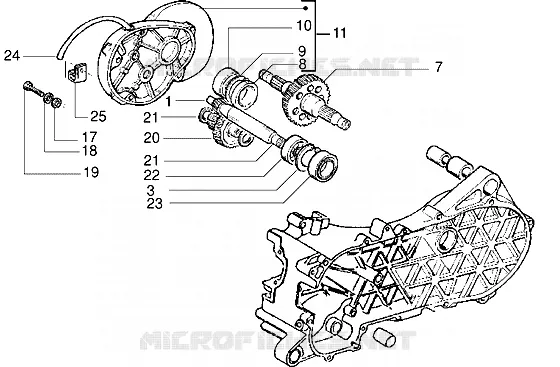

Rear wheel shaft
1
3
7
8
9
10
11
17
18
19
20
21
21
22
23
24
25
1
Driven pulley shaft
4808485
Non disponible
3
Snap ring
480953
3,26€ Prix unitaire TTC
7
Rear wheel axis cpl.
487161
Non disponible
8
Gasket ring
478498
8,09€ Prix unitaire TTC
9
Circlip
006647
2,81€ Prix unitaire TTC
10
Bearing 20x47x14
434735
21,74€ Prix unitaire TTC
11
Not available
8300245
Non disponible
17
Flat washer 15x8,4x1,5
003058
3,49€ Prix unitaire TTC
18
Notched washer 14x8,3x1,8
012540
2,72€ Prix unitaire TTC
19
screw M8x45
030075
Non disponible
20
Transmission shaft
4871605
Non disponible
21
Shim washer
288639
2,68€ Prix unitaire TTC
22
Bearing
942135
Non disponible
23
Gasket ring
480066
12,59€ Prix unitaire TTC
24
Reduction unit breather pipe assembly
826874
Non disponible
25
Hose clamp
483638
3,07€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
