par

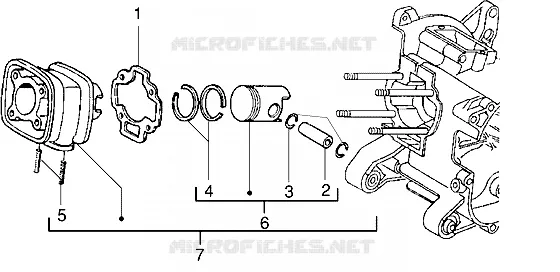

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
1
Gasket sp0,4
827301
14,40€ Prix unitaire TTC
1
Gasket sp0,8
829633
14,27€ Prix unitaire TTC
1
Gasket sp0,6
827303
14,76€ Prix unitaire TTC
2
Piston pin
239404
6,91€ Prix unitaire TTC
3
Stop ring
239455
2,46€ Prix unitaire TTC
4
Gasket ring
825416
9,04€ Prix unitaire TTC
5
Stud bolt M6
239397
2,68€ Prix unitaire TTC
6
Piston assy 1cat.(M)
4878020001
70,36€ Prix unitaire TTC
6
Piston assy 2cat.(N)
4878020002
70,36€ Prix unitaire TTC
6
Piston assy 3cat.(O)
4878020003
70,36€ Prix unitaire TTC
6
Piston assy 1M
825182
Non disponible
6
Piston assy 2M
825185
Non disponible
6
Piston assy 4cat.(P)
4878020004
70,36€ Prix unitaire TTC
7
Cyl.unit
828963
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
