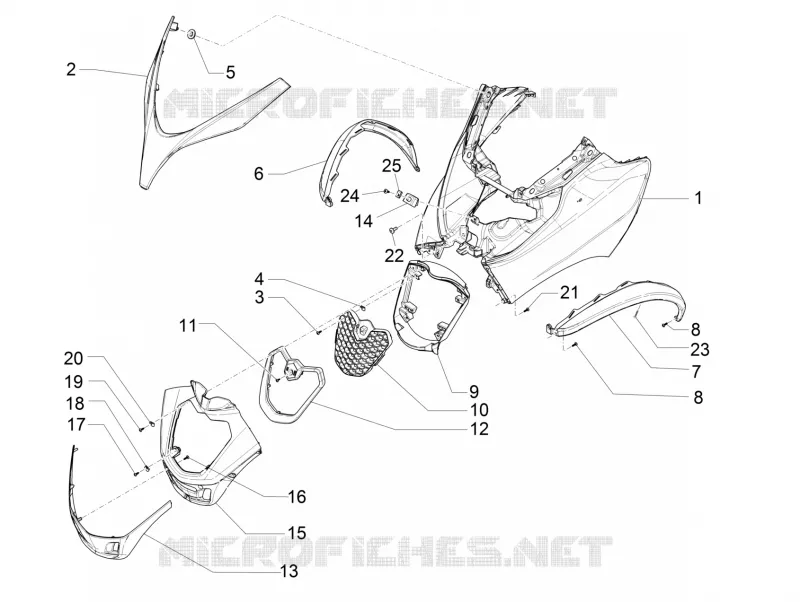

Tablier avant
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Front shield
2B000687000EZ
Non disponible
1
Front shield
2B000687500NN
Non disponible
1
Front shield
2B000687
Non disponible
1
Front shield
2B000687000L8
338,27€ Prix unitaire TTC
1
Front shield
2B000687000XE8
Non disponible
1
Front shield
2B000687000XV7
Non disponible
1
Front shield
2B000687500Q4
Non disponible
1
Front shield
2B000687500NO
Non disponible
1
Front shield
2B000687000YR5
Non disponible
1
Front shield
2B000687000XB3
Non disponible
1
Front shield
2B000687000XD2
Non disponible
2
Shield upper closing
2B000690000NN
Non disponible
2
Shield upper closing
2B000690000NA
107,11€ Prix unitaire TTC
2
Shield upper closing
2B000690500NO
Non disponible
2
Shield upper closing
2B000690000XE8
107,11€ Prix unitaire TTC
2
Shield upper closing
2B000690000L8
107,11€ Prix unitaire TTC
2
Shield upper closing
2B000690000XV7
Non disponible
2
Shield upper closing
2B000690000Q4
Non disponible
2
Shield upper closing
2B000690000XD2
Non disponible
2
Shield upper closing
2B000690
89,83€ Prix unitaire TTC
2
Shield upper closing
2B000690000XB3
Non disponible
2
Shield upper closing
2B000690000YR5
Non disponible
3
Self-tap screw
CM178604
3,05€ Prix unitaire TTC
4
Spring plate
CM017410
2,50€ Prix unitaire TTC
5
Pad
1B000888
4,98€ Prix unitaire TTC
6
Side beading R
2B0007070000C5
Non disponible
7
Side beading L
2B0007060000C5
Non disponible
8
Self tapping screw D4x16
CM180701
2,34€ Prix unitaire TTC
9
Radiator duct
2B000703
23,65€ Prix unitaire TTC
10
Water cooler grille
2B000704
23,54€ Prix unitaire TTC
11
Self tapping screw
297498
2,40€ Prix unitaire TTC
12
Radiator frame
1B0048955
Non disponible
12
Radiator frame
2B000702
109,92€ Prix unitaire TTC
13
Lower shield
2B0006940000C
16,70€ Prix unitaire TTC
14
Support clamp
2B000699
10,68€ Prix unitaire TTC
15
Shield lower closing
2B000693000YR5
Non disponible
15
Shield lower closing
2B000693000XD2
94,24€ Prix unitaire TTC
15
Shield lower closing
2B000693500NO
94,24€ Prix unitaire TTC
15
Shield lower closing
2B000693000XB3
94,24€ Prix unitaire TTC
15
Shield lower closing
2B000693500Q4
Non disponible
15
Shield lower closing
2B000693000XV7
94,24€ Prix unitaire TTC
15
Shield lower closing
2B000693
78,60€ Prix unitaire TTC
15
Shield lower closing
2B000693500NN
Non disponible
15
Shield lower closing
2B000693000XE8
94,24€ Prix unitaire TTC
15
Shield lower closing
2B000693000L8
Non disponible
15
Shield lower closing
2B000693000EZ
94,24€ Prix unitaire TTC
16
Self tapping screw D4x16
CM180701
2,34€ Prix unitaire TTC
17
Metric screw M6x22
CM179201
2,46€ Prix unitaire TTC
18
Spring plate M6
254485
3,55€ Prix unitaire TTC
19
Self tapping screw D4.2x16
CM178601
3,05€ Prix unitaire TTC
20
Spring plate
CM017410
2,50€ Prix unitaire TTC
21
Self tapping screw D4x16
CM180701
2,34€ Prix unitaire TTC
22
Screw M6x16
CM179301
3,07€ Prix unitaire TTC
23
Self tapping screw 4,2x16
CM178606
11,35€ Prix unitaire TTC
24
Self tapping screw D4.2x13
CM178603
3,74€ Prix unitaire TTC
25
Spring plate
CM017410
2,50€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
