par

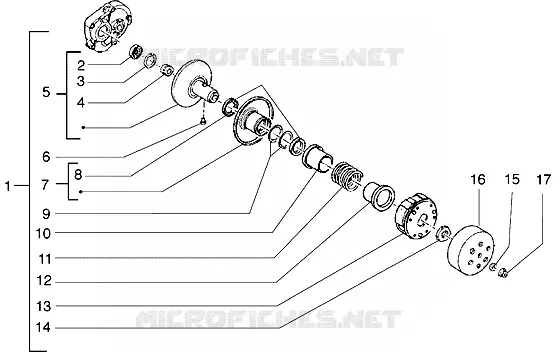

Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Complete secondary pulley
CM100107
Non disponible
1
Not available
CM1001031
Non disponible
1
Pulley
CM100106
Non disponible
1
Secondary pulley
CM100108
228,24€ Prix unitaire TTC
2
Bearing
289953
Non disponible
3
Ring
006624
4,27€ Prix unitaire TTC
4
Roller cage
289952
20,05€ Prix unitaire TTC
5
Complete fixed secondary pulley
4795526
196,81€ Prix unitaire TTC
6
Pin
482766
3,94€ Prix unitaire TTC
7
Complete movable secondary pulley
827893
84,72€ Prix unitaire TTC
8
Gasket ring
289950
12,59€ Prix unitaire TTC
9
Gasket
289840
4,66€ Prix unitaire TTC
10
Pulley side cap
483443
9,23€ Prix unitaire TTC
11
Variator spring
478028
21,78€ Prix unitaire TTC
12
Clutch side cap
487935
19,49€ Prix unitaire TTC
13
Centrifugal clutch assy
CM100203
Non disponible
13
Clutch, assy.
CM100201
Non disponible
13
Clutch, assy.
CM100202
Non disponible
14
Ring nut
289955
15,77€ Prix unitaire TTC
15
Washer
265300
3,05€ Prix unitaire TTC
16
Clutch drum
289933
58,46€ Prix unitaire TTC
17
Flanged nut M10x1,25
289519
3,12€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
