par

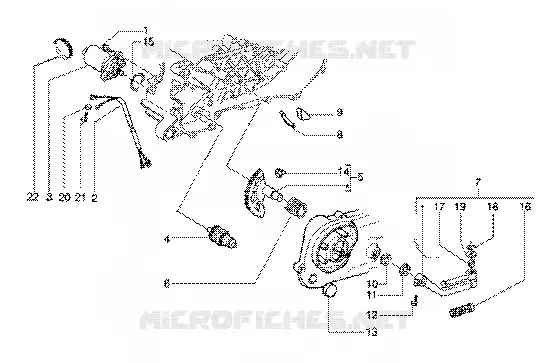

Starting motor-starter lever
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
screw M6x35
414838
3,07€ Prix unitaire TTC
2
Cable harn.
294941
Non disponible
3
Starter motor
289094
Non disponible
4
Starter motor gear
431321
91,98€ Prix unitaire TTC
5
Start.shaft
434087
Non disponible
6
Starter lever return spring
289495
11,24€ Prix unitaire TTC
7
Starter lever
286214
39,98€ Prix unitaire TTC
8
Plate
286206
Non disponible
9
Pad
286207
3,52€ Prix unitaire TTC
10
Washer 16,3x23,8
433987
2,40€ Prix unitaire TTC
11
Snap ring
006635
3,49€ Prix unitaire TTC
11
Circlip
006416
3,26€ Prix unitaire TTC
12
Screw w/ flange M6x25
414837
Non disponible
13
Cover
483859
4,00€ Prix unitaire TTC
14
Pad
433603
Non disponible
15
Gasket
224962
5,54€ Prix unitaire TTC
16
Guard
286217
22,27€ Prix unitaire TTC
17
Spring
286218
Non disponible
18
Ring
288041
4,46€ Prix unitaire TTC
19
Washer 10,1x2,5
286219
11,20€ Prix unitaire TTC
20
Flat washer 4,2x7,6x0,9
016404
2,40€ Prix unitaire TTC
21
screw
018644
3,07€ Prix unitaire TTC
22
Hose clamp
433459
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
