par

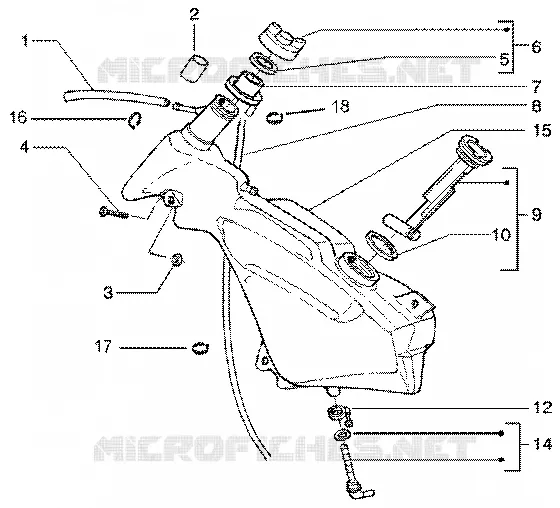

Fuel tank
1
2
3
4
5
6
7
8
9
10
12
14
15
16
17
18
1
Pipe
CM001307
Non disponible
2
Insert
575248
Non disponible
3
Self locking nut M6
288245
2,56€ Prix unitaire TTC
4
Metric screw TBC
575249
2,46€ Prix unitaire TTC
5
Tank cover gasket
258160
6,96€ Prix unitaire TTC
6
Tank cap
299913
Non disponible
7
Float chamber
299920
Non disponible
8
Fuel tube
CM004111
Non disponible
9
Level gauge
575746
Non disponible
10
Gasket
258161
Non disponible
12
Hose clamp
577557
Non disponible
14
Joint
574629
Non disponible
15
Tank
575226
Non disponible
16
Lock-strap L=180mm
145298
2,98€ Prix unitaire TTC
17
Hose clamp
109960
Non disponible
18
Hose clamp
CM002904
2,38€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
