par

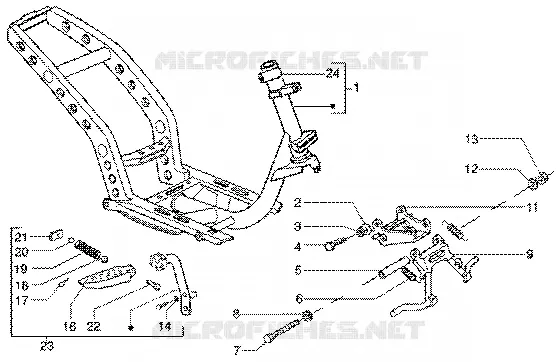

Chasis-central stand
1
2
3
4
5
6
7
8
9
11
12
13
14
17
18
18
19
20
21
22
23
24
1
Frame
577671
Non disponible
2
Spring washer 13,75x8,15x4,5
016408
3,49€ Prix unitaire TTC
3
Plain washer 8,2x20x2,5
013861
3,17€ Prix unitaire TTC
4
Screw m8x30
597151
Non disponible
5
Pin
583603
8,76€ Prix unitaire TTC
6
Spring
278940
9,41€ Prix unitaire TTC
7
screw
030080
4,97€ Prix unitaire TTC
8
Gasket ring
271695
3,16€ Prix unitaire TTC
9
Central stand
581785
Non disponible
11
Maintenance
272929
49,42€ Prix unitaire TTC
12
Spring washer 13,75x8,15x4,5
016408
3,49€ Prix unitaire TTC
13
Nut M8x6,5
020108
1,97€ Prix unitaire TTC
14
Flat washer 15x8,4x1,5
003058
3,49€ Prix unitaire TTC
16
Foot rest
295451
22,15€ Prix unitaire TTC
17
Elastic spring
259933
2,45€ Prix unitaire TTC
18
Flat washer 15x8,4x1,5
003058
3,49€ Prix unitaire TTC
19
Premisphere spring
295590
Non disponible
20
Ball D6
295591
Non disponible
21
Rubber mat stop foot rest
295592
Non disponible
22
Pin
295593
6,72€ Prix unitaire TTC
23
Footrest
573502
35,52€ Prix unitaire TTC
23
Footrest
573501
35,52€ Prix unitaire TTC
24
Lock support
298604
46,30€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
