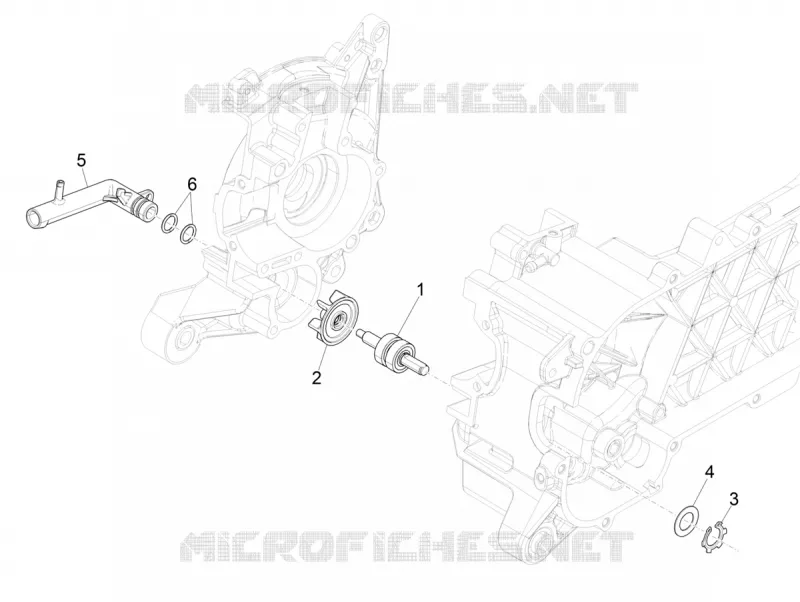

Cooler pump
1
2
3
4
5
6
1
Water pump shaft assy.cpl.
497406
48,92€ Prix unitaire TTC
2
Impeller
487730
19,85€ Prix unitaire TTC
3
Stop ring
289553
2,68€ Prix unitaire TTC
4
Thrust washer
289554
2,56€ Prix unitaire TTC
5
Water outlet union
878910
17,87€ Prix unitaire TTC
6
O-ring
289254
2,46€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
